MultiCrimp
UpLoader
UnLoader
MultiStrip
Description
expand_more
expand_less

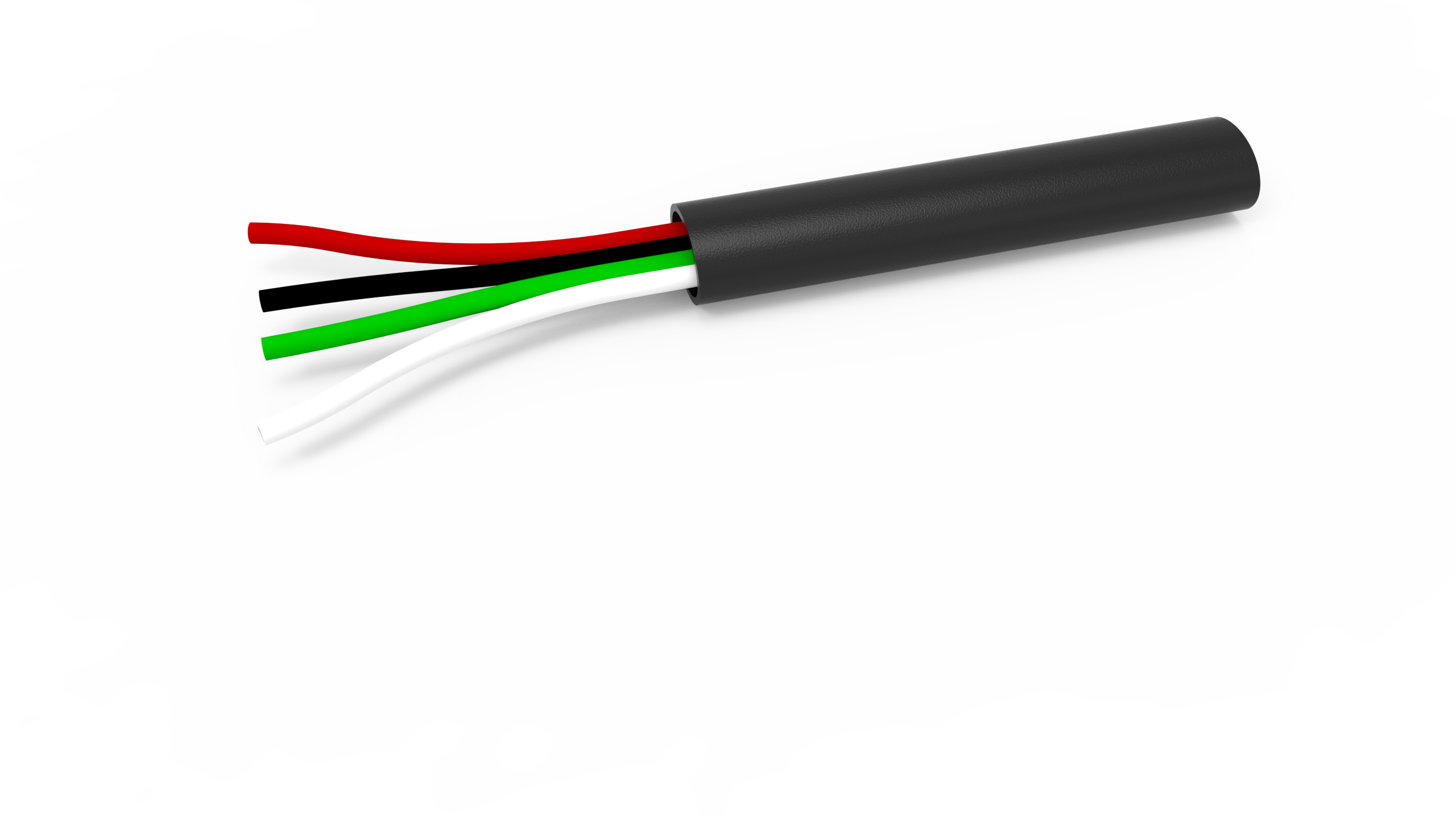

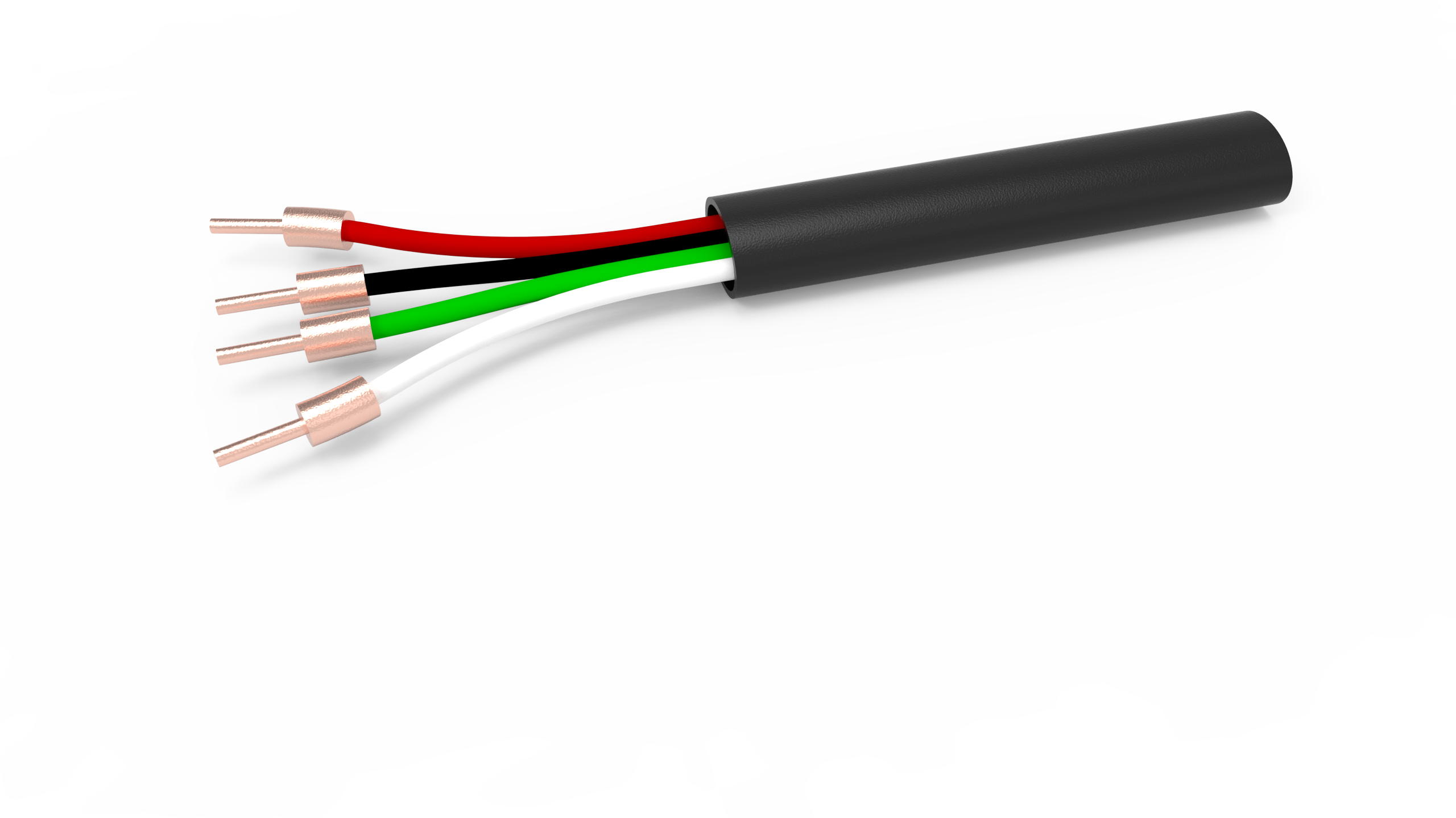

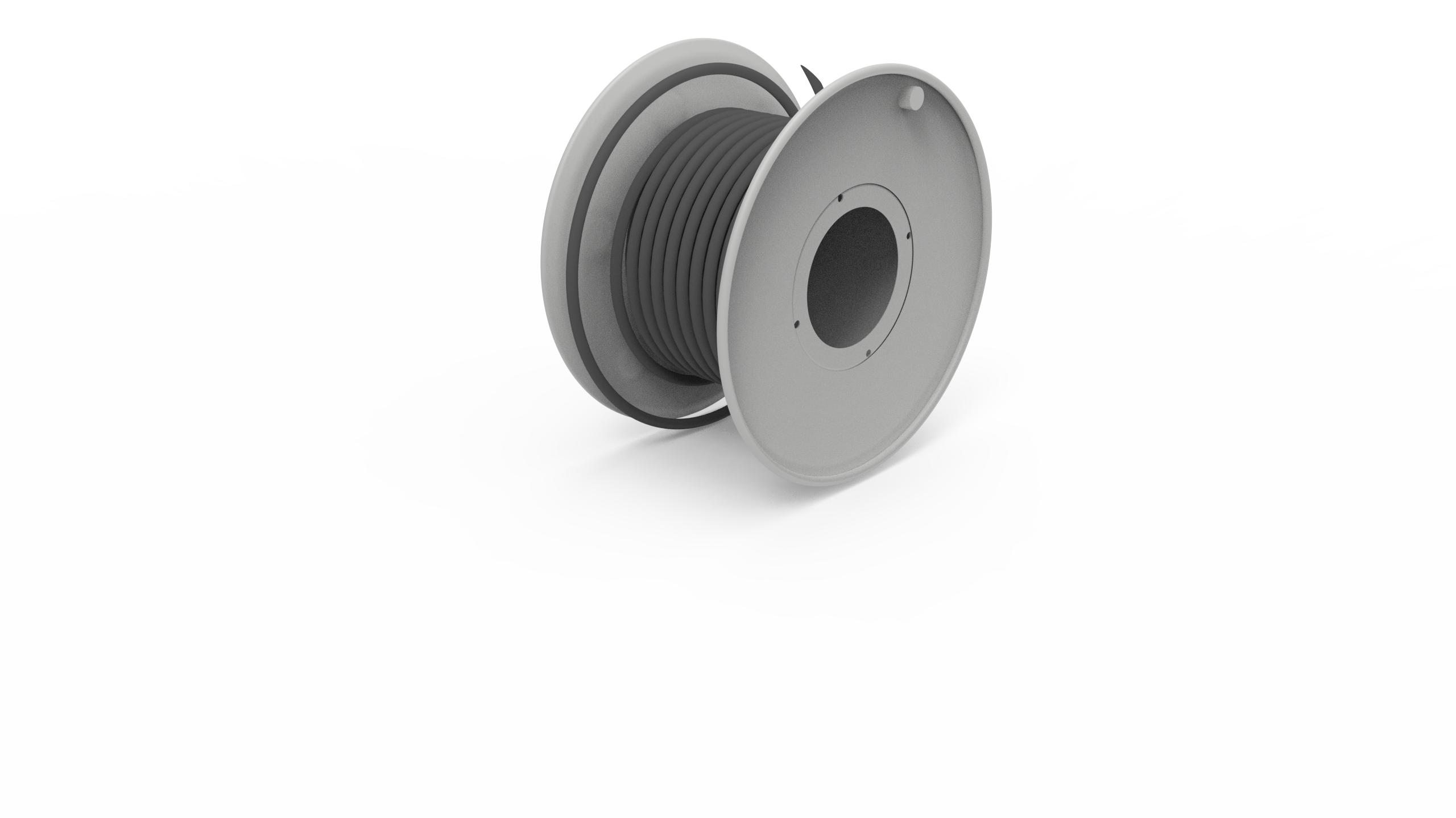

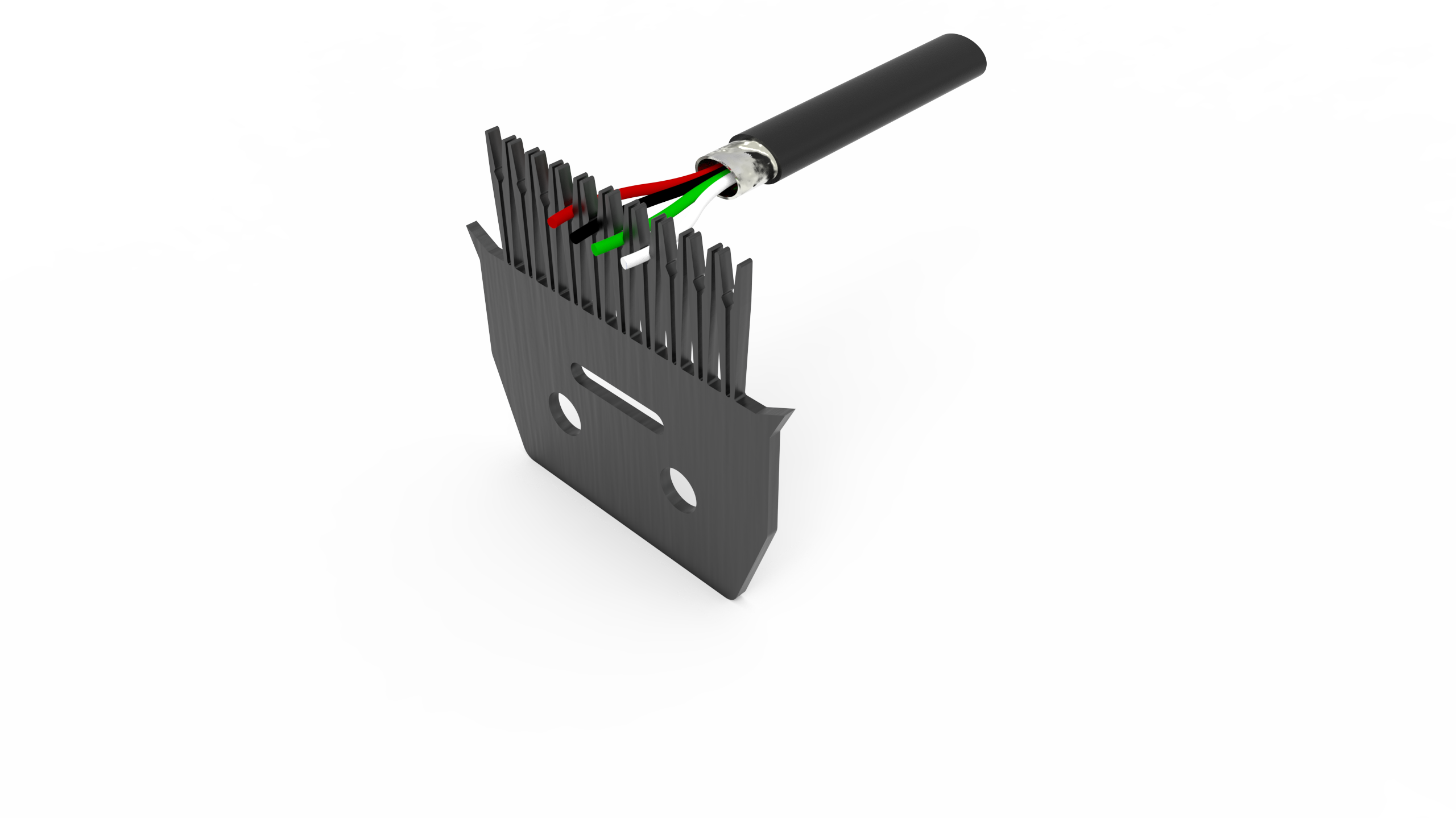

The AutoCrimpLine accepts a cable in roll and crimp contacts in reels. The line cuts the cable to measure, binds it, strips its jacket, strips the wire isolation and crimps the contacts on the wire ends. The processed cable is then unloaded to a box.
UpLoader
CableAlign
PreHandler
WireSort
RJ45Press
MoldingTesting
UnLoader
Description
expand_more
expand_less

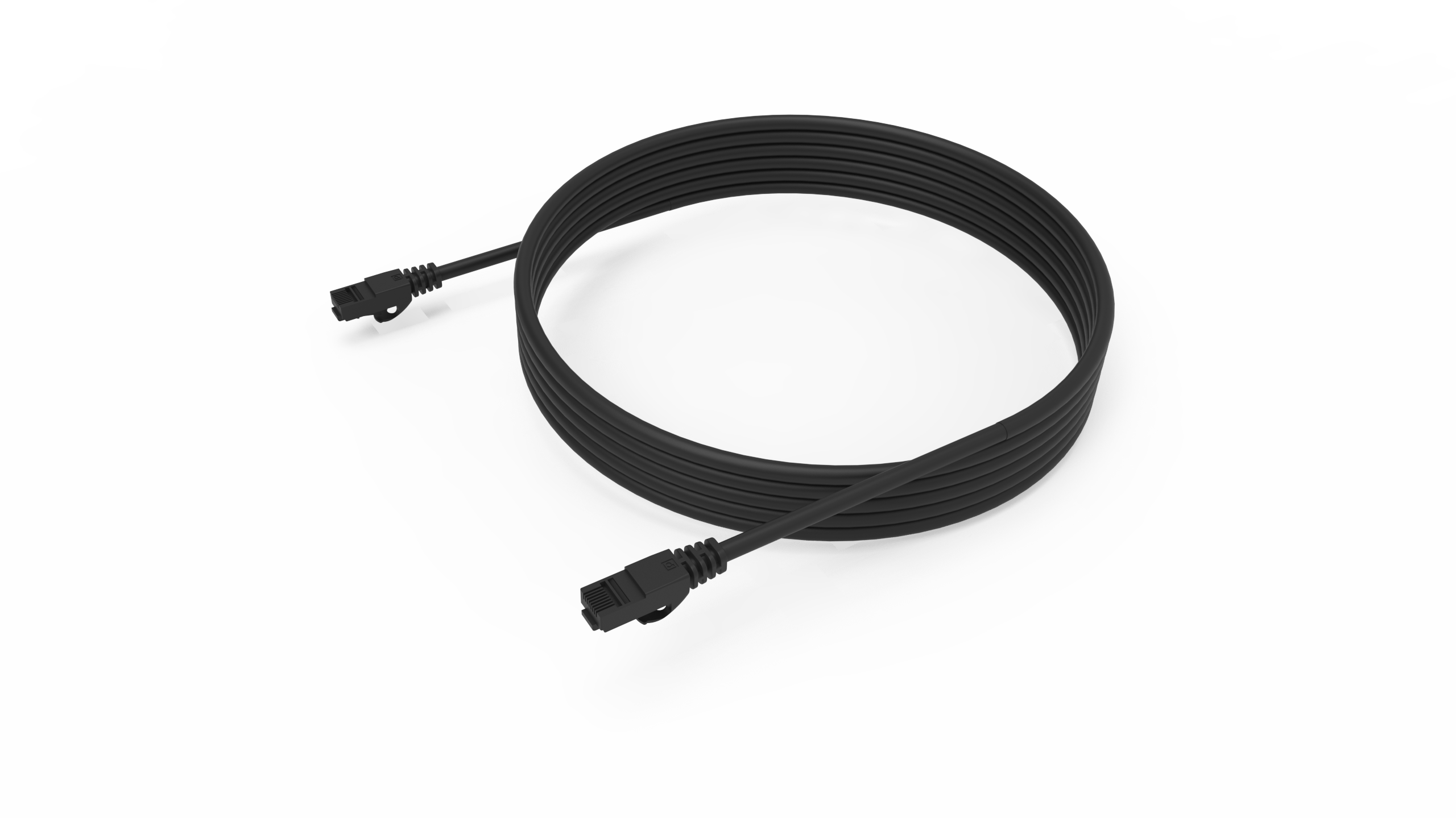

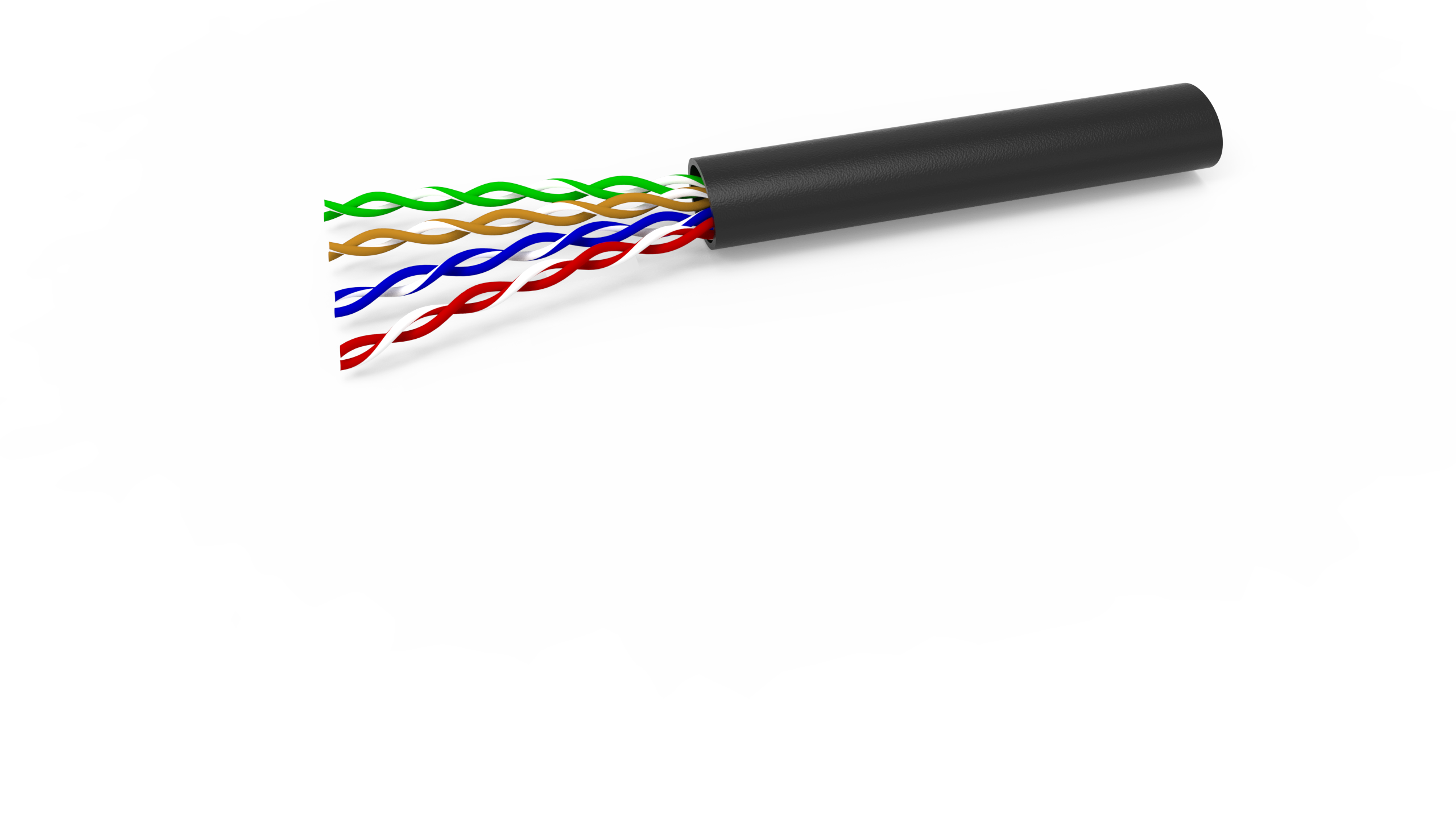

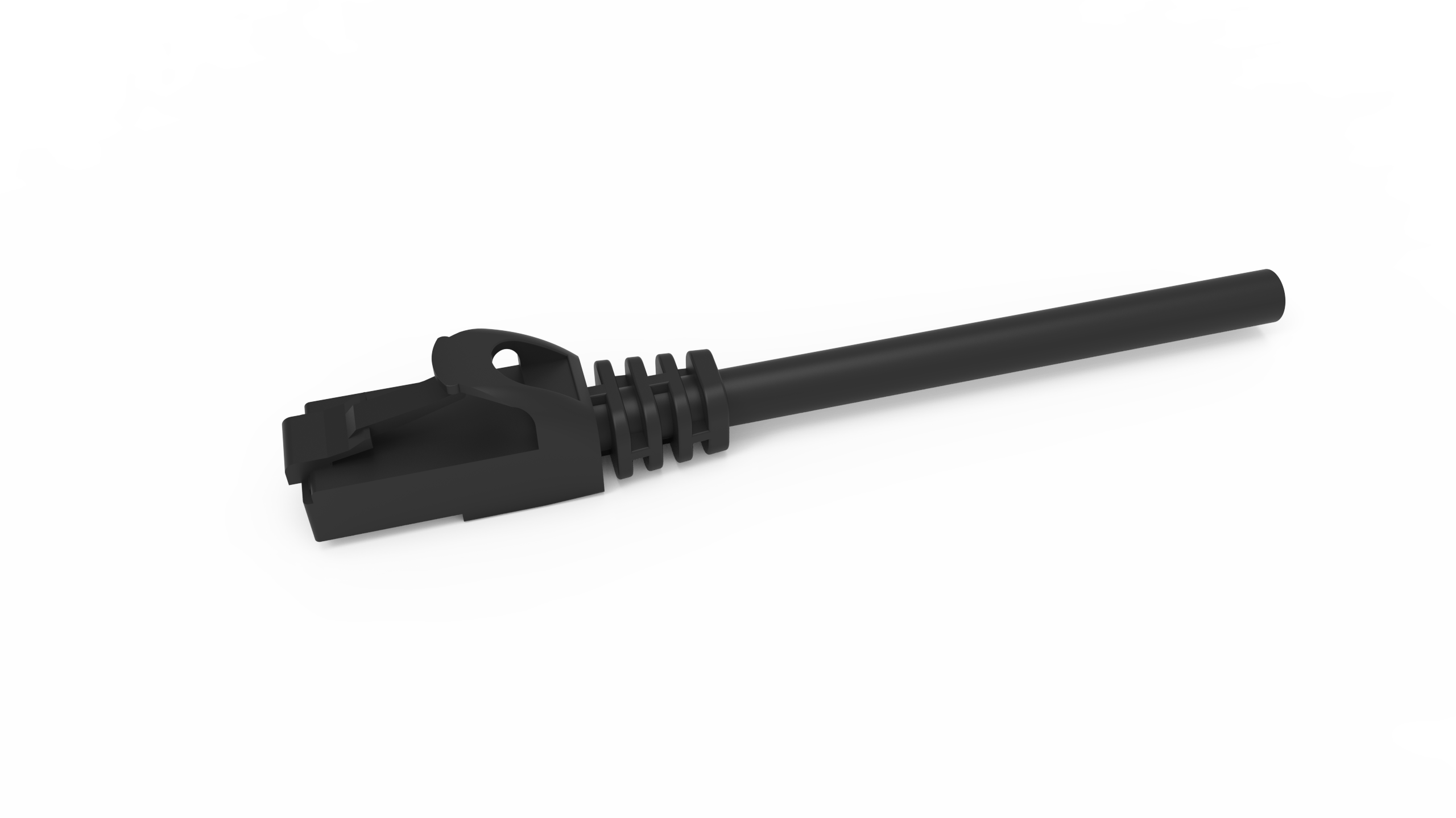

The AutoCat5eLine accepts a Cat5e cable in a roll and RJ45 connectors in bulk. The line produces Cat5e cables that are molded and tested.
Specification
expand_more
expand_less
“Cable assembly line for Cat5e Ethernet cables”
UpLoader
CableAlign
LayerRemove
PreHandler
WireSort
RJ45Press
MoldingTesting
UnLoader
Description
expand_more
expand_less

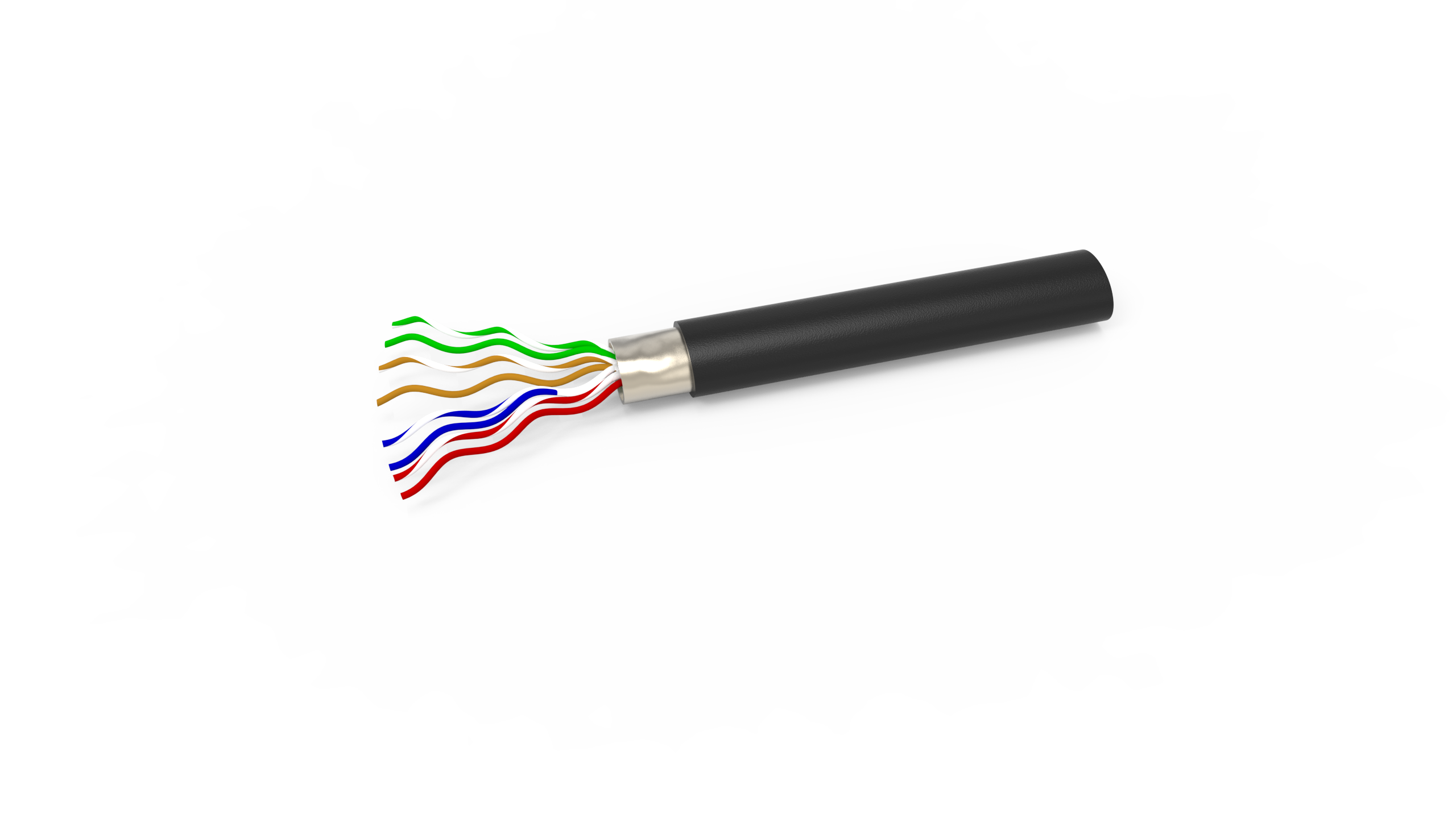

The AutoCat6aLine accepts a Cat6a cable in a roll and RJ45 connectors in bulk. The line produces Cat5e cables that are molded and tested.
Specification
expand_more
expand_less
“Cable assembly line for Cat6a Ethernet cables”
ManualUpLoader
MultiCrimp
CableAlign
MultiStrip
Description
expand_more
expand_less

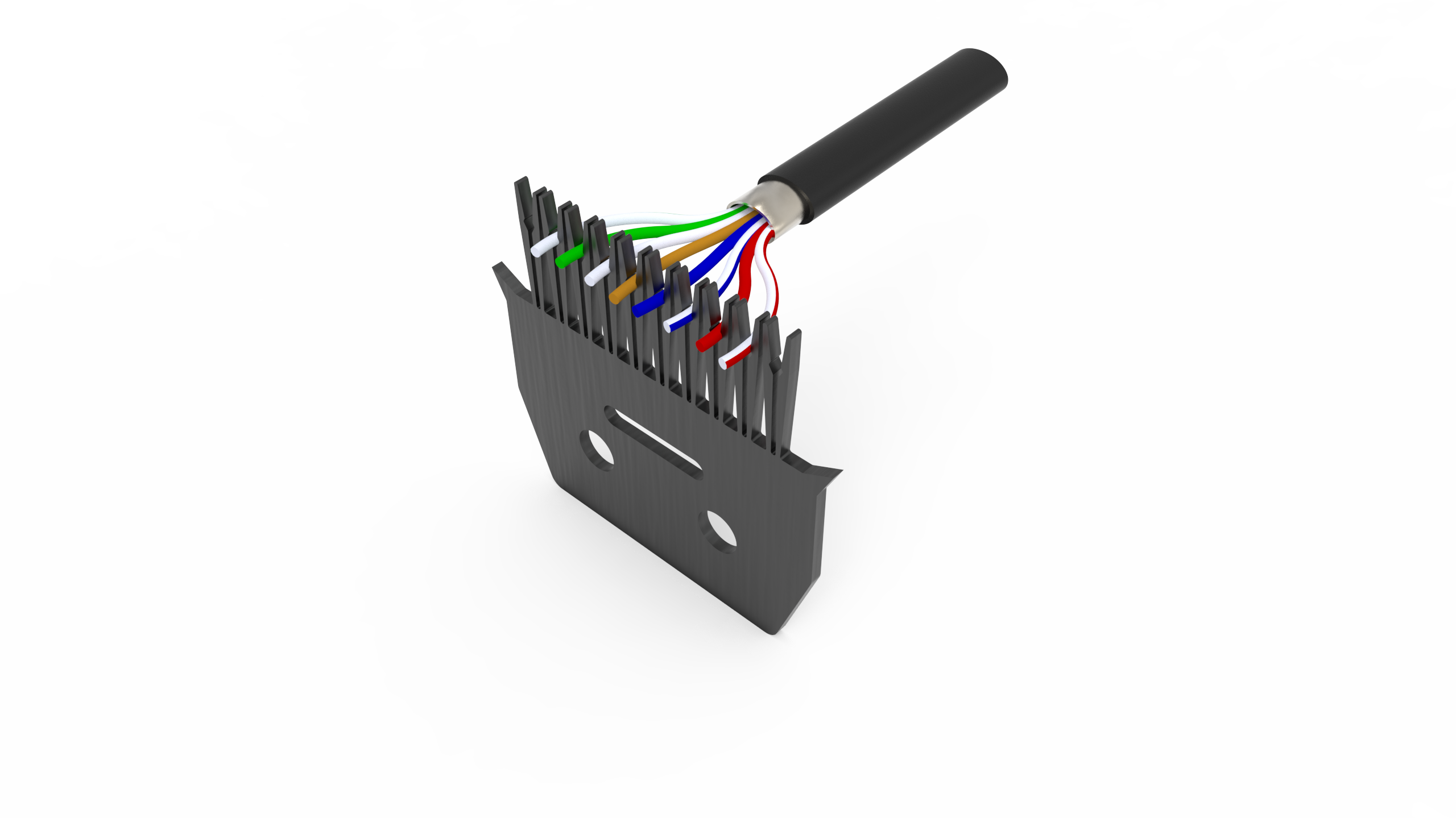

The SemiAutoCrimpLine accepts a cable already coiled and binded manualy put on a pallet, and crimp contacts in reels. The line strips the wire isolation and crimps the contacts on the wire ends. The processed cable is then manually unloaded from the pallet.
Specification
expand_more
expand_less
Line for multi core cable crimping with manual loading
